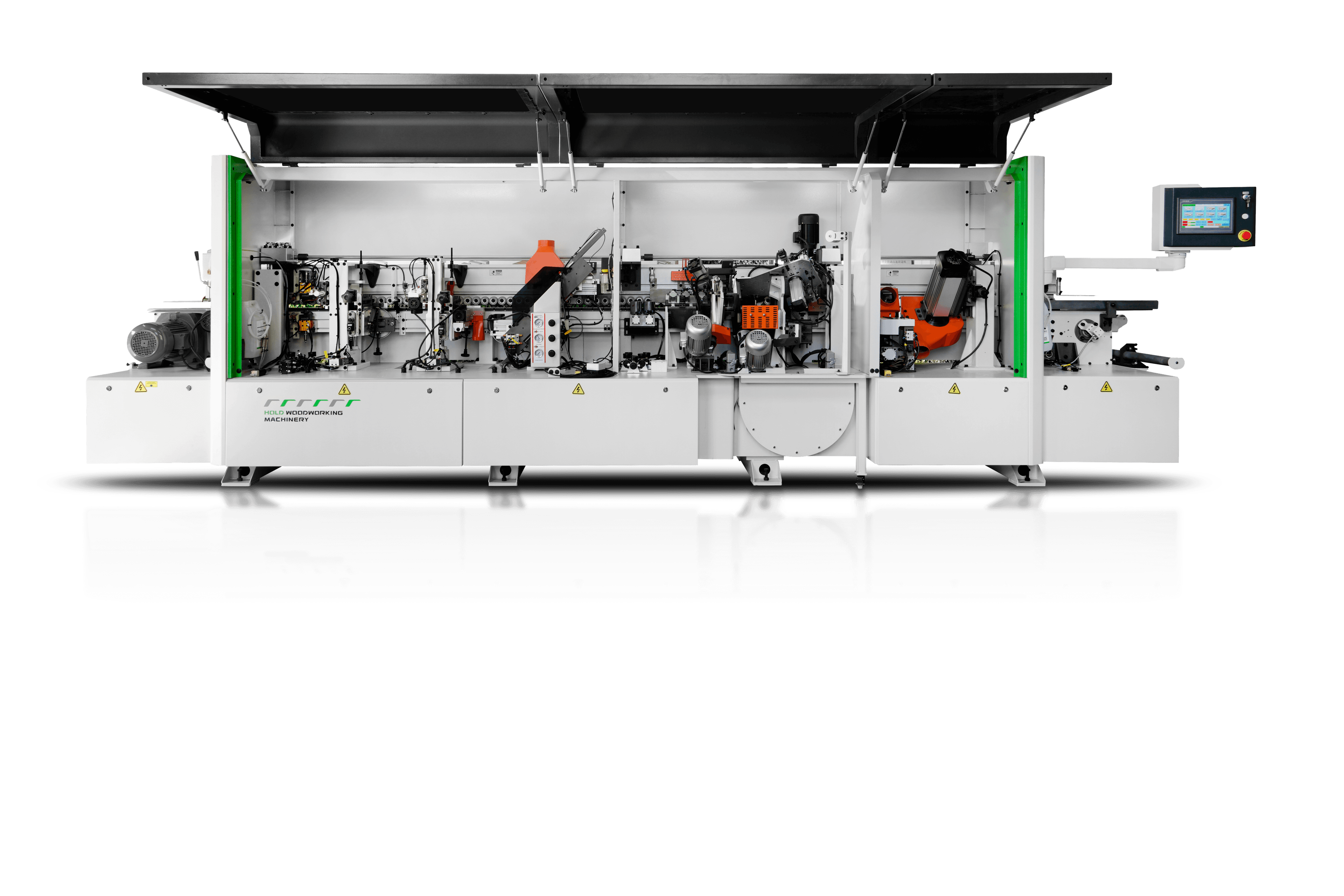

Automatic bevel edge banding machine :HD782

This heavy‑duty automatic edge banding machine features electric pressure beam lifting and a composite bevel + straight edge processing system, enabling seamless handling of diverse edge banding requirements. Powered by an intelligent touch‑screen control system with real‑time monitoring, it ensures stable operation, precise trimming, and a flawless finish from preheating to buffing.

Product Description

Technical Data

Parameter	Specification
Lifting Method	Electric lifting
Total Power	Approx. 24.7 kW
Overall Dimensions	Approx. 5500×960×1750 mm
Vertical Surface Height	3 mm
Feeding Speed	14 m/min
Edge Band Thickness	0.6 – 1.2 mm
Panel Thickness	15 – 25 mm
Working Air Pressure	0.6 MPa
Min. Panel Size	150×200 mm

Intelligent Control System

10‑inch touch screen for flexible operation
Real‑time current / voltage display
Pre‑feeding function
Intelligent I/O monitoring
Inverter fault code display
Automatic edge counting
Smart inverter monitoring
User‑friendly intelligent interface

Core Functional Units

Electric Lifting of Pressure Beam

Touch‑screen controlled pressure beam lifting eliminates manual height adjustment, improving changeover efficiency and operational precision.

Separating Device

Effectively prevents hot melt adhesive from contaminating the board surface after gluing, ensuring a clean finish.

Crushing & Molding

Straight edge processing motor: 0.75 kW
Bevel edge crushing motor: 5.5 kW
Satisfies both bevel and straight edge processing requirements.

Panel Heating Unit

Preheats the gluing surface in low‑temperature environments, enhancing adhesive bond strength for a perfect edge banding result.

Edge Band Grooving Mechanism

Bevel + straight edge composite gluing system with a bottom‑mounted EVA gluing unit. Precise glue control, good thermal conductivity, stable operation, uniform coating, and strong adhesion.

Bevel Edge Pressing + Straight Edge Pressing

A composite pressing sequence (bevel first, then straight edge) effectively solves glue separation at the front end of the straight edge while also meeting full bevel edge processing needs.

End Cutting Unit

Linear guide rails with sliders for high precision and durability
Automatic lubrication system extends equipment lifespan
Pneumatic positioning for quick front and rear edge trimming
High‑speed motor upgraded to 0.55 kW for more stable cutting

Rough & Fine Trimming Mechanism

High‑speed motors trim excess edge banding protruding from the top and bottom surfaces, ensuring the edge band is flush and smooth with the panel.

Scraping Unit

Effectively removes knife marks and the R‑rounded corners left by the trimming knife, resulting in a smooth, refined edge finish.

Flat Scraping + Cleaning Agent Device

Flat scraping: Removes excess hot melt adhesive from the workpiece surface
Cleaning agent device: Dilutes residual glue for easier cleaning

Buffing Unit

Removes glue residue, leaving the edge band and panel surface smooth and clean, enhancing the final gloss.

Structure & Drive Advantages

Hardened gear reducer – 4.0 kW power for stable, reliable operation
Rubber‑coated wheel design – Front and rear auxiliary rollers are rubber‑coated to prevent scratches on panel surfaces

Why Choose This Edge Banding Machine?

Bevel + straight edge composite processing – one machine meets both application needs
Electric pressure beam – touch‑screen controlled for fast, effortless changeovers
Intelligent control system – real‑time monitoring, self‑diagnostics, user‑friendly interface
Full‑process quality assurance – from preheating to buffing, every step is optimized
Scratch‑prevention design – rubber‑coated rollers protect the board surface
