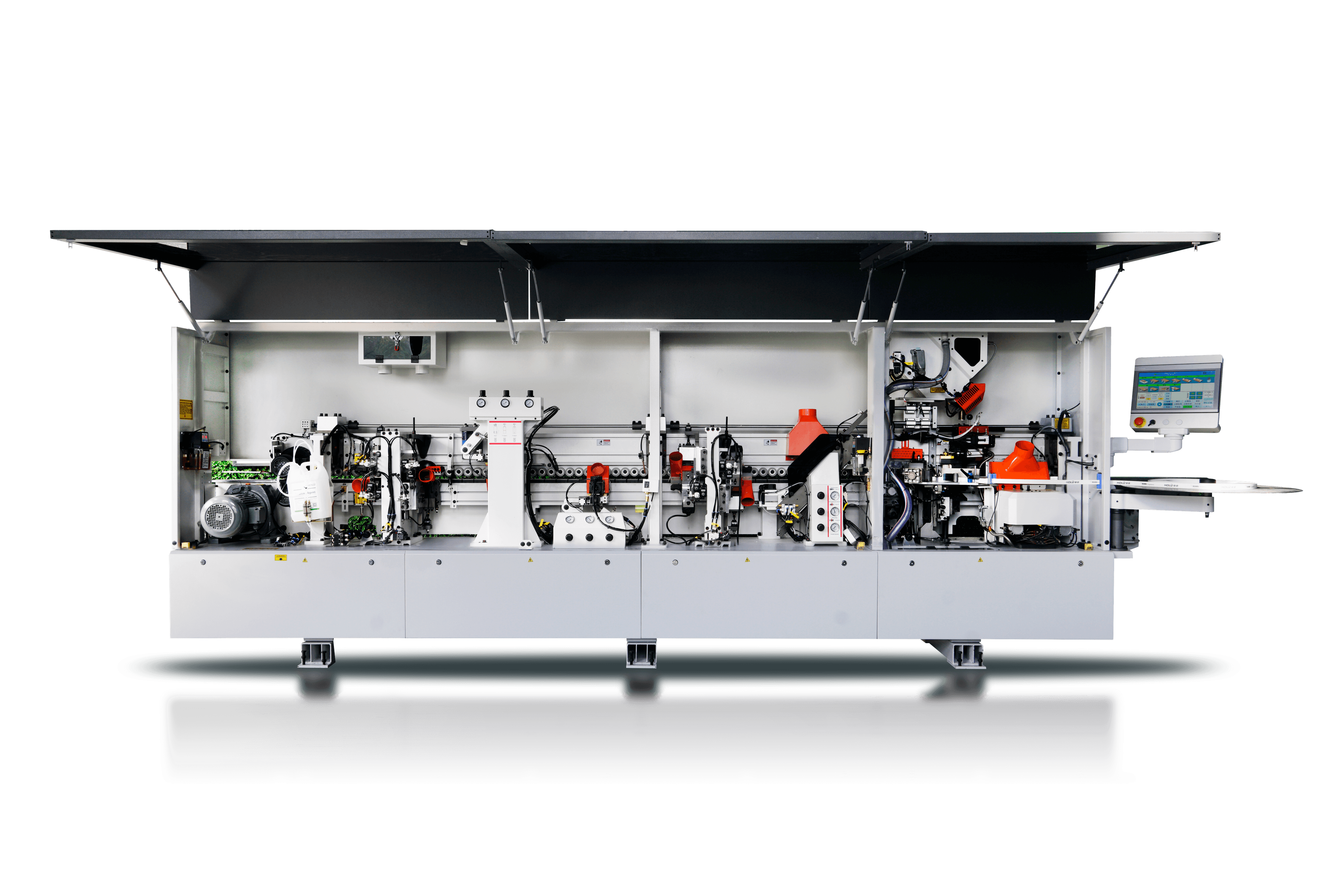

HD511J

Technical Data

Core Highlights

• Fully Enclosed Frame & High-Rigidity Bed – Welded steel structure with high-temperature baking paint, ensuring strength, stability, and long-term durability.

• Electric Lifting of Pressure Beam – Reduces labor intensity, improves accuracy and efficiency.

• 250mm Extended Feeding Plate – Flush with the guide plate, ideal for long board edge banding.

• No Tape Alarm Device – Real-time detection of missing edge banding tape with on-screen alert, preventing defects and boosting productivity.

• One-Key Quick Changeover (Notch Edging Process) – Seamlessly switch between standard edging and notch edging via the touchscreen, with intelligent avoidance function.

• Quick Change Gluing System – Easily adapts to different adhesives for uniform coating and strong adhesion.

• Digital Readout on Trimming & Scraping Units – Convenient adjustment with precise control.

• Hinge Hole Avoidance Function – Trimming, scraping, and flat scraping units can avoid 35mm hinge holes, ensuring perfect edge banding on hinge-hole workpieces.

• Rocker Type Fluent Strip – Smooth material feeding and discharging, protecting panel surfaces.

Intelligent Control System

• 15.6-inch touchscreen with user-friendly interface

• Real-time current and voltage display

• Intelligent I/O monitoring

• Inverter fault code display

• Automatic edge counting

• Smart inverter monitoring

Key Functional Units

Separating Device

Effectively prevents hot melt glue contamination on the board surface, ensuring a clean finish after gluing.

Pre-Milling Unit

Removes surface defects and burrs from the panel edge, ensuring optimal edge banding quality.

Panel Heating Unit

Preheats the gluing surface in low-temperature environments, enhancing adhesive bond strength.

Fast-Melting Gluing System

Upper glue pot coating + automatic glue granule supply. Precise glue application, stable operation, uniform coating, and quick glue type changeover.

No Tape Alarm Device

Monitors edge banding tape in real time; alerts immediately if tape runs out, preventing production interruptions and defects.

Pressing Unit

Each steel wheel is equipped with a glue scraper to quickly remove adhesive residue; silicone wheels provide strong pressing effect.

End Cutting Unit

Linear guide rails with sliders for high precision and durability. Automatic lubrication system extends machine life; pneumatic positioning ensures accurate trimming even for short and thick panels.

Pneumatic Fine Trimming

One-key adjustment via screen. Hinge hole avoidance function (supports 35mm hinge holes). Trims excess edge tape into an R-shaped arc, creating a smooth surface flush with the panel.

Corner Rounding

Rounds the four corners of the panel for a refined, safe, and aesthetically pleasing finish.

Pneumatic Scraping

Independent scraping unit with pneumatic adjustment and quick changeover via screen. Hinge hole avoidance function. Eliminates cutter marks and refines the R-shaped corners left by fine trimming for a perfectly smooth surface.

Flexible Flat Scraper

Upper flat scraping uses a three-axis cylinder; lower flat scraping features hinge hole avoidance. Removes residual hot melt adhesive from the panel surface for a clean finish.

Buffing Unit

Removes glue marks and polishes the edge band and panel surface to a smooth, uniform sheen.

Rocker Type Fluent Strip + Gear Motor

Ensures stable and smooth panel transport, suitable for high-speed continuous operation.

Why Choose This Edge Banding Machine?

• High-Rigidity Construction – Fully enclosed welded frame for long-term stability

• Intelligent Control – Large touchscreen, self-diagnostics, easy operation

• Quick Changeover – One‑key switch to notch edging process, ideal for custom furniture production

• Hinge Hole Avoidance – Solves a common challenge in cabinet manufacturing

• Complete Process Integration – Every step from pre-milling to buffing is designed for premium quality
